OUR MACHINES
Our range of rugged and high-performance heavy duty hydraulic
m.s steel scrap baling press machines designed for different baling requirements.

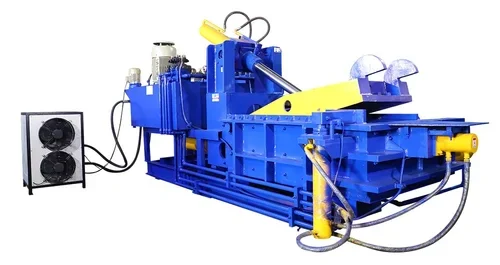

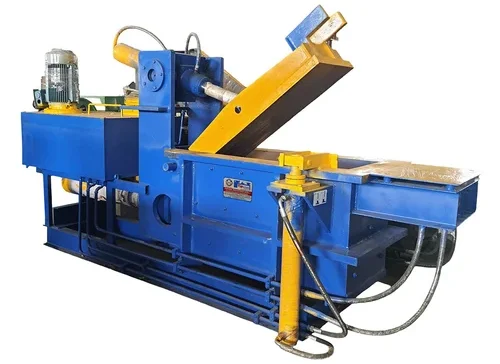

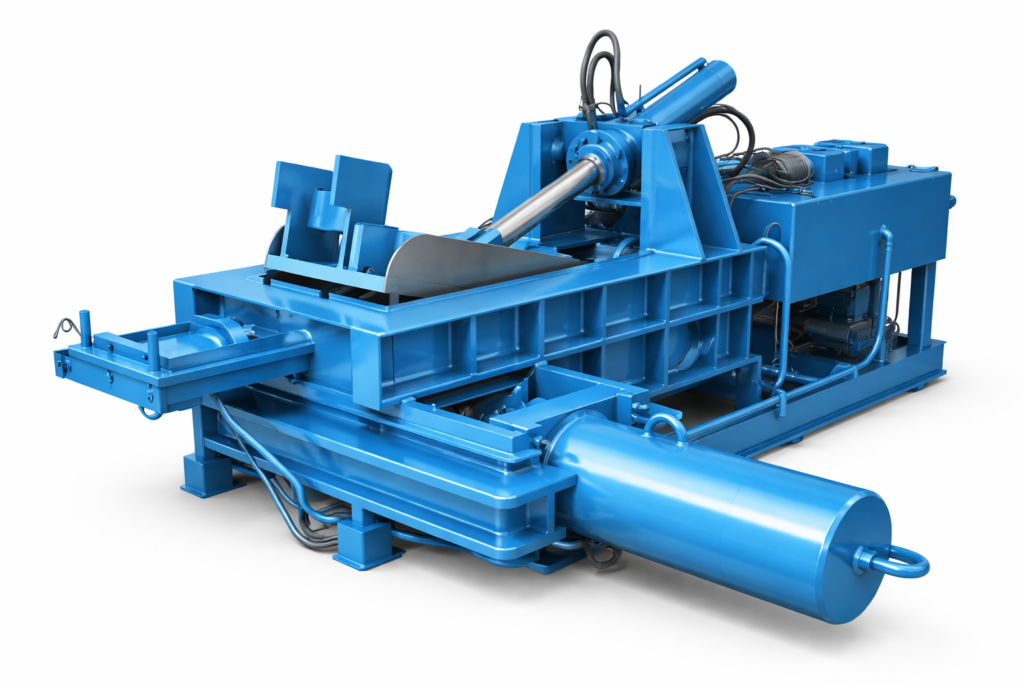

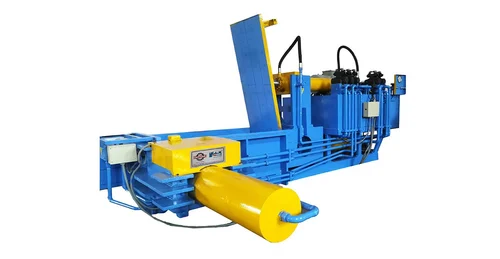

Triple Action Scrap Baling Machines
12” x 12” x 10” & 12” x 12” x 12” ------------>
Manual Machine
- Motor: 30 HP, 3 Phase
- Bale Size: 12” x 12” x 10”
- Bale Weight: 35 – 45 kg
- Production Capacity: 1 – 1.5 Ton/Hour
- Cycle Time: 60 – 70 sec
- Pressing Force: 45 – 115 Ton
- Oil Tank Capacity: 600 Liters
View Full Specifications
⚙️ Other Technical Specifications
- Machine Type: Triple Action Hydraulic Baling Press
- Operation Mode: Manual / Semi-Automatic / Fully Automatic
- Compression Type: Three Side Compression (Top, Side & Front)
- Hydraulic System: High Pressure Hydraulic Power Pack
- Control Panel: PLC Based (Automatic Model) / Electrical Panel (Manual)
- Cylinder Type: Heavy Duty Hydraulic Cylinders
- Cooling System: Air / Oil Cooling (Optional)
- Material Feeding: Manual / Conveyor (Optional)
- Bale Top Ejection: Hydraulic type
- Bale Turn out Hydraulic type
- Plate used: Prime plate Ultra Tested
- Scratch Less Chamber Shield By Sail Harder Plate
🔥 Key Features
- Heavy Duty Fabricated Steel Body
- High Efficiency Hydraulic System
- Low Maintenance Design
- Energy Efficient Motor
- Faster Cycle Time
- Strong & Uniform Bale Formation
- Easy Operation & Safety Features
- Long Service Life
🎯 Applications
- Steel Scrap
- Mild Steel Scrap
- Aluminium Scrap
- Copper Scrap
- Industrial Metal Waste
Automatic Machine
- Motor: 40 HP, 3 Phase
- Bale Size: 12” x 12” x 12”
- Bale Weight: 45 – 55 kg
- Production Capacity: 1.5 – 2 Ton/Hour
- Cycle Time: 60 – 70 sec
- Pressing Force: 55 – 115 Ton
- Control System: PLC Based
- Oil Tank Capacity: 600 Liters
View Full Specifications
⚙️ Other Technical Specifications
- Machine Type: Triple Action Hydraulic Baling Press
- Operation Mode: Manual / Semi-Automatic / Fully Automatic
- Compression Type: Three Side Compression (Top, Side & Front)
- Hydraulic System: High Pressure Hydraulic Power Pack
- Control Panel: PLC Based (Automatic Model) / Electrical Panel (Manual)
- Cylinder Type: Heavy Duty Hydraulic Cylinders
- Cooling System: Air / Oil Cooling (Optional)
- Material Feeding: Manual / Conveyor (Optional)
- Bale Top Ejection: Hydraulic type
- Bale Turn out Hydraulic type
- Plate used: Prime plate Ultra Tested
- Scratch Less Chamber Shield By Sail Harder Plate
🔥 Key Features
- Heavy Duty Fabricated Steel Body
- High Efficiency Hydraulic System
- Low Maintenance Design
- Energy Efficient Motor
- Faster Cycle Time
- Strong & Uniform Bale Formation
- Easy Operation & Safety Features
- Long Service Life
🎯 Applications
- Steel Scrap
- Mild Steel Scrap
- Aluminium Scrap
- Copper Scrap
- Industrial Metal Waste
15” x 15” x 15” ------------------>
Manual Machine
- Motor: 40 HP, 3 Phase
- Bale Size: 15” x 15” x 15”
- Bale Weight: 55-75 kg
- Production Capacity: 2 – 2.5 Ton/Hour
- Cycle Time: 60 – 70 sec
- Pressing Force: 70 – 125 Ton
- Oil Tank Capacity: 800 Liters
View Full Specifications
⚙️ Other Technical Specifications
- Machine Type: Triple Action Hydraulic Baling Press
- Operation Mode: Manual / Semi-Automatic / Fully Automatic
- Compression Type: Three Side Compression (Top, Side & Front)
- Hydraulic System: High Pressure Hydraulic Power Pack
- Control Panel: PLC Based (Automatic Model) / Electrical Panel (Manual)
- Cylinder Type: Heavy Duty Hydraulic Cylinders
- Cooling System: Air / Oil Cooling (Optional)
- Material Feeding: Manual / Conveyor (Optional)
- Bale Top Ejection: Hydraulic type
- Bale Turn out Hydraulic type
- Plate used: Prime plate Ultra Tested
- Scratch Less Chamber Shield By Sail Harder Plate
🔥 Key Features
- Heavy Duty Fabricated Steel Body
- High Efficiency Hydraulic System
- Low Maintenance Design
- Energy Efficient Motor
- Faster Cycle Time
- Strong & Uniform Bale Formation
- Easy Operation & Safety Features
- Long Service Life
🎯 Applications
- Steel Scrap
- Mild Steel Scrap
- Aluminium Scrap
- Copper Scrap
- Industrial Metal Waste
Automatic Machine
- Motor: 50 HP, 3 Phase
- Bale Size: 15” x 15” x 15”
- Bale Weight: 60 – 75 kg
- Production Capacity: 2.5 – 3 Ton/Hour
- Cycle Time: 60 – 70 sec
- Pressing Force: 80 – 125 Ton
- Control System: PLC Based
- Oil Tank Capacity: 800 Liters
View Full Specifications
⚙️ Other Technical Specifications
- Machine Type: Triple Action Hydraulic Baling Press
- Operation Mode: Manual / Semi-Automatic / Fully Automatic
- Compression Type: Three Side Compression (Top, Side & Front)
- Hydraulic System: High Pressure Hydraulic Power Pack
- Control Panel: PLC Based (Automatic Model) / Electrical Panel (Manual)
- Cylinder Type: Heavy Duty Hydraulic Cylinders
- Cooling System: Air / Oil Cooling (Optional)
- Material Feeding: Manual / Conveyor (Optional)
- Bale Top Ejection: Hydraulic type
- Bale Turn out Hydraulic type
- Plate used: Prime plate Ultra Tested
- Scratch Less Chamber Shield By Sail Harder Plate
🔥 Key Features
- Heavy Duty Fabricated Steel Body
- High Efficiency Hydraulic System
- Low Maintenance Design
- Energy Efficient Motor
- Faster Cycle Time
- Strong & Uniform Bale Formation
- Easy Operation & Safety Features
- Long Service Life
🎯 Applications
- Steel Scrap
- Mild Steel Scrap
- Aluminium Scrap
- Copper Scrap
- Industrial Metal Waste

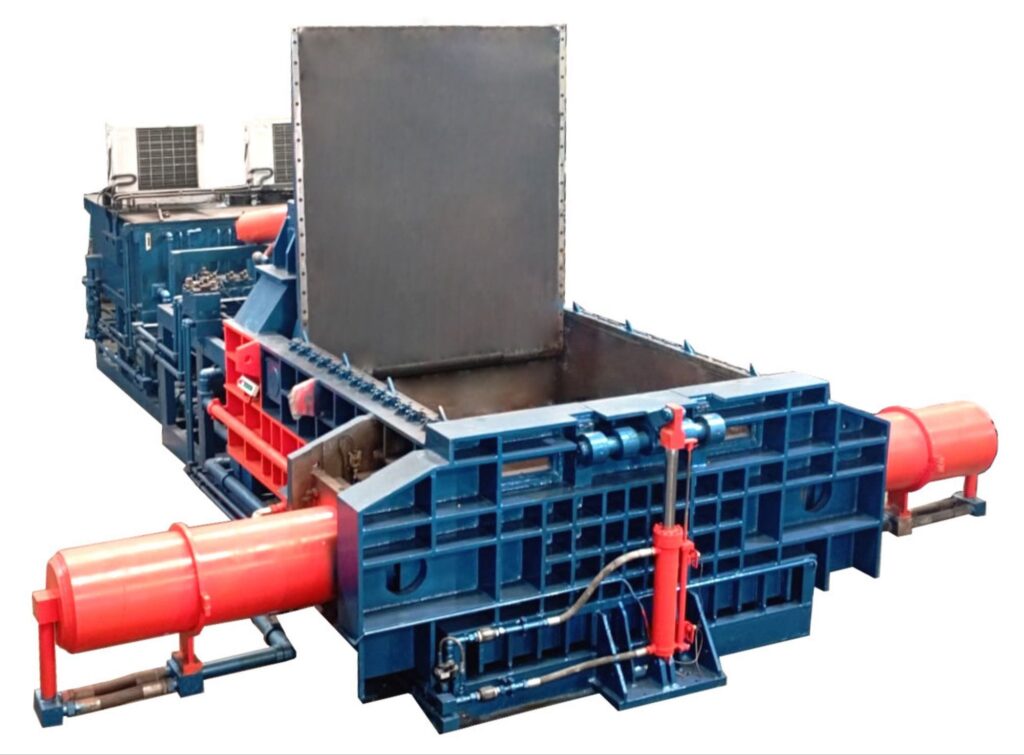

20” x 20” x 20” ------------------>
Manual Machine
- Motor: 40 HP + 40 HP, 3 Phase
- Bale Size: 20” x 20” x 20”
- Bale Weight: 75 – 90 kg
- Production Capacity: 3.5 – 4.5 Ton/Hour
- Cycle Time: 70 – 80 sec
- Pressing Force: 120 – 225 Ton
- Oil Tank Capacity: 1200 Liters
- Feeding by hopper (optional)
View Full Specifications
⚙️ Other Technical Specifications
- Machine Type: Triple Action Hydraulic Baling Press
- Operation Mode: Manual / Semi-Automatic / Fully Automatic
- Compression Type: Three Side Compression (Top, Side & Front)
- Hydraulic System: High Pressure Hydraulic Power Pack
- Control Panel: PLC Based (Automatic Model) / Electrical Panel (Manual)
- Cylinder Type: Heavy Duty Hydraulic Cylinders
- Cooling System: Air / Oil Cooling (Optional)
- Material Feeding: Manual / Conveyor (Optional)
- Bale Top Ejection: Hydraulic type
- Bale Turn out Hydraulic type
- Plate used: Prime plate Ultra Tested
- Scratch Less Chamber Shield By Sail Harder Plate
🔥 Key Features
- Heavy Duty Fabricated Steel Body
- High Efficiency Hydraulic System
- Low Maintenance Design
- Energy Efficient Motor
- Faster Cycle Time
- Strong & Uniform Bale Formation
- Easy Operation & Safety Features
- Long Service Life
🎯 Applications
- Steel Scrap
- Mild Steel Scrap
- Aluminium Scrap
- Copper Scrap
- Industrial Metal Waste
Automatic Machine
- Motor: 40 HP + 40 HP, 3 Phase
- Bale Size: 20” x 20” x 20”
- Bale Weight: 75 – 90 kg
- Production Capacity: 3.5 – 4.5 Ton/Hour
- Cycle Time: 70 – 80 sec
- Pressing Force: 120 – 225 Ton
- Oil Tank Capacity: 1200 Liters
- Feeding by hopper (optional)
View Full Specifications
⚙️ Other Technical Specifications
- Machine Type: Triple Action Hydraulic Baling Press
- Operation Mode: Manual / Semi-Automatic / Fully Automatic
- Compression Type: Three Side Compression (Top, Side & Front)
- Hydraulic System: High Pressure Hydraulic Power Pack
- Control Panel: PLC Based (Automatic Model) / Electrical Panel (Manual)
- Cylinder Type: Heavy Duty Hydraulic Cylinders
- Cooling System: Air / Oil Cooling (Optional)
- Material Feeding: Manual / Conveyor (Optional)
- Bale Top Ejection: Hydraulic type
- Bale Turn out Hydraulic type
- Plate used: Prime plate Ultra Tested
- Scratch Less Chamber Shield By Sail Harder Plate
🔥 Key Features
- Heavy Duty Fabricated Steel Body
- High Efficiency Hydraulic System
- Low Maintenance Design
- Energy Efficient Motor
- Faster Cycle Time
- Strong & Uniform Bale Formation
- Easy Operation & Safety Features
- Long Service Life
🎯 Applications
- Steel Scrap
- Mild Steel Scrap
- Aluminium Scrap
- Copper Scrap
- Industrial Metal Waste
Our Other Scrap Processing Machines

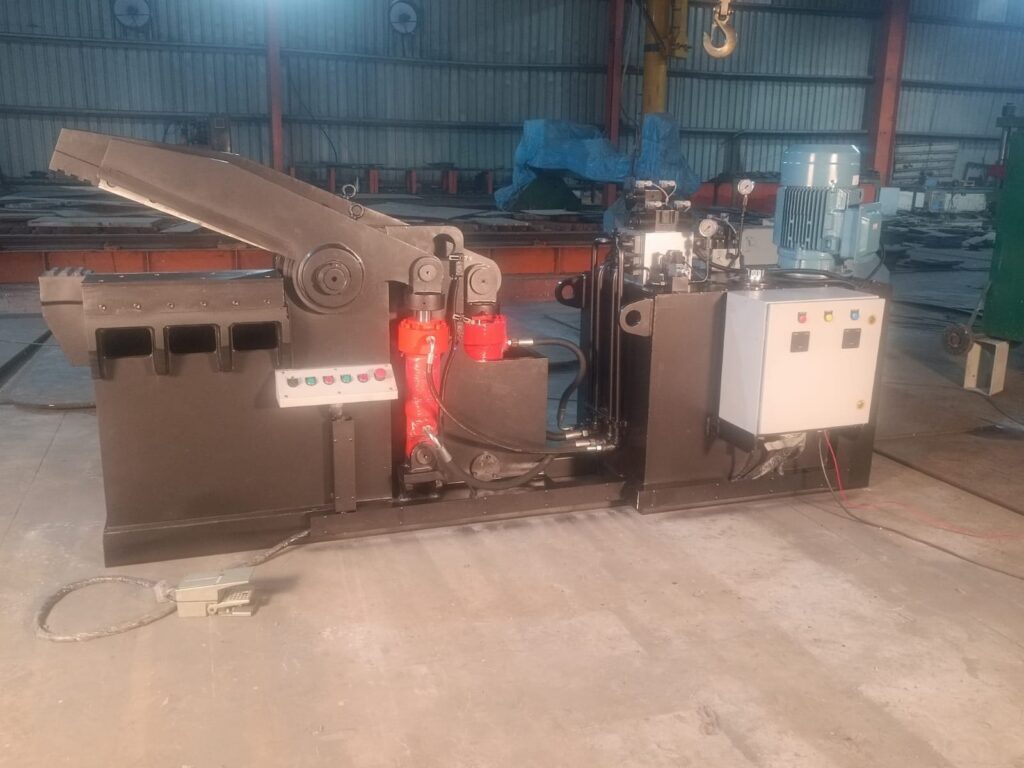

⚙️ M.S. Steel Round Shearing Hydraulic Machine (Alligator Type)
⚙️ Basic Details
Machine Type: Hydraulic Alligator Shearing Machine
Operation: Manual / Semi-Automatic (Foot Pedal / Lever / Button)
Motor: 15 HP
Voltage: 3 Phase
Application: Scrap Metal Cutting & Recycling
View Full Specifications
🏗️ Construction & Design
Body Material: Heavy Duty Mild Steel Fabricated
Cutting Type: Cold Shearing (No Heating Required)
Blade Type: High Carbon / Alloy Steel Replaceable Blades
Design: Alligator Jaw Type (Crocodile Style Opening & Closing)
Drive System: Hydraulic Cylinder Driven
✂️ Cutting Capacity (Key Highlight)
Round Steel Bar: 10 mm – 60 mm Dia
Angle / Channel / I-Beam: Medium Sections Supported
⚡ Performance
Cutting Force: max 150 Ton (Model Based)
Working Pressure: 2200 psi
Cutting Speed: 6 – 12 Cuts/Min
Cycle Operation: Single Stroke / Continuous
📏 Blade & Machine Specs
Blade Length: 610 mm
Blade Opening: 300 mm approx.
Machine Weight: 2.5 Ton– 3 Ton (depends on model)
🛢️ Hydraulic System
Hydraulic Type: High Pressure Hydraulic System
Pump: plunger pump cum Gear Pump
🔧 Key Features
Heavy-duty cutting for scrap metal
Low maintenance & easy operation
High cutting force with compact design
Portable models available (with wheels)
Suitable for continuous industrial use
No foundation required (in many models)
♻️ Suitable Materials
M.S. Round Bar / Rod
Steel Scrap
Aluminium Scrap
Copper Scrap
Pipes, Channels, Angles
Automobile only ms Scrap

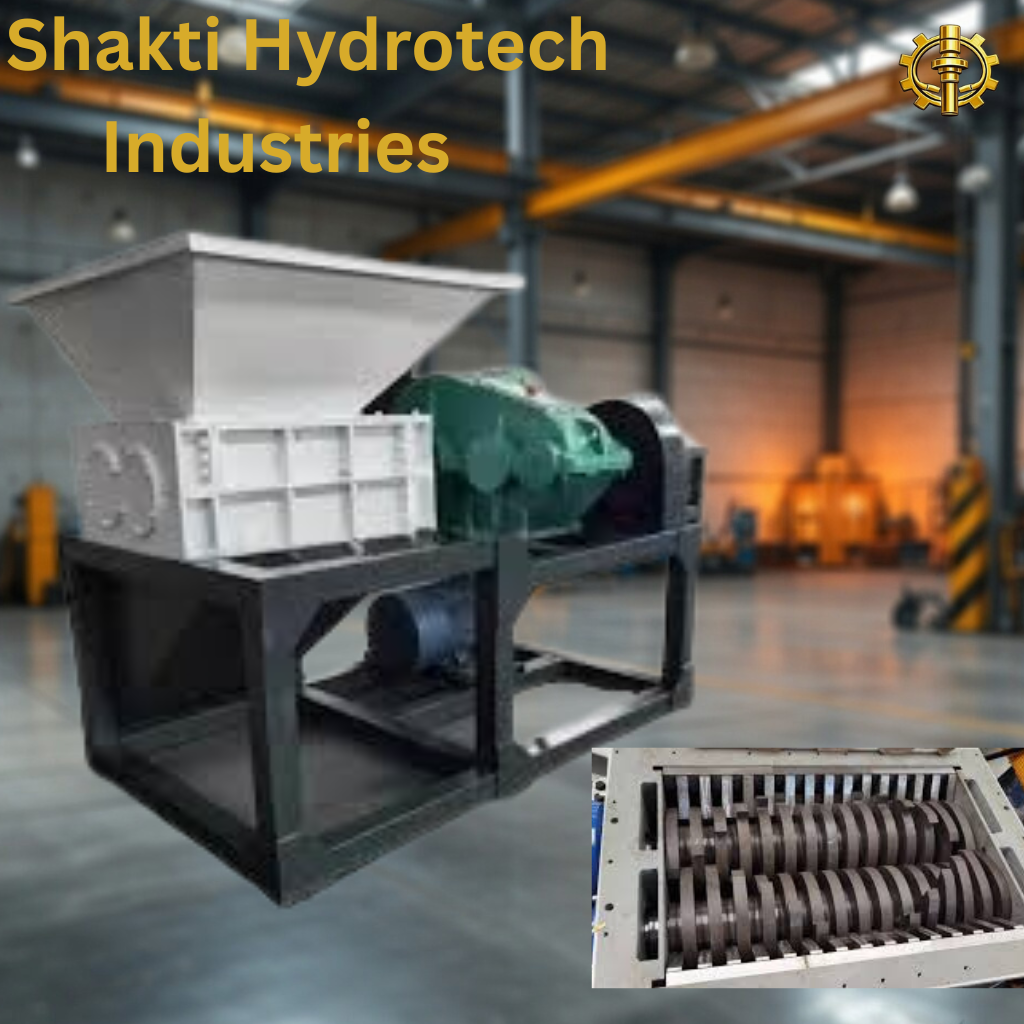

🔩 Heavy Duty Metal Scrap Shredder Machine
⚙️ Basic Details
Machine Type: Industrial Metal Scrap Shredder
Shredder Type: Twin shaft
Operation: Fully Automatic / PLC Controlled
Application: Scrap Metal Size Recycling
Power Supply: 440V, 3 Phase, 50 Hz
View Full Specifications
🏗️ Construction & Design
Body Material: Heavy Duty Mild Steel fabricated body structure
Shaft Type: High Torque Dual Shaft (for heavy scrap)
Blade Material: Hardened Alloy Steel Special grade material
Rotor Type: Heavy Duty Single Block Rotor
Feeding System: Hopper / Conveyor Feeding
Discharge System: Conveyor / Magnetic Separator (Optional)
⚡ Performance
Processing Capacity:
👉 1 Ton/hr – 5 Ton/hr (model based)
Motor Power:
👉 20 HP – 150 HP+ (industrial models)
Output Size:
👉 20 mm – 300 mm (adjustable)
Rotor Speed:
👉 15 – 40 RPM (low speed, high torque)
Volume Reduction:
👉 Up to 80–90% size reduction
🔩 Shredding Capability
Heavy Metal Scrap
Car Body / Automobile Scrap
Steel Drums & Containers
Aluminium & Copper Scrap
Industrial Waste Metal
Appliances (Washing Machine, Fridge, etc.)
🛢️ Mechanical & System Details
Drive System: Low Speed High Torque Gearbox
Bearings: Heavy Duty Spherical Bearings
Lubrication: Automatic / Manual Greasing
Overload Protection: PLC + Auto Reverse System
📏 Machine Specifications
Feeding Size: Up to 1000 mm scrap size
Chamber Size: 1200 mm – 3000 mm (model based)
Machine Weight: 5 Ton – 50 Ton
Installation: Heavy Duty Foundation Required
🔧 Key Features
Low speed + high torque → handles heavy scrap easily
Dual shaft system for powerful cutting & tearing
Continuous operation for industrial use
Replaceable blades → low maintenance cost
High output with uniform size control
PLC automation for safe & smart operation
♻️ Suitable Materials
Mild Steel Scrap (MS)
Heavy Melting Scrap (HMS)
Aluminium Scrap
Copper Scrap
Car Scrap / Automobile Parts
Industrial Metal Waste

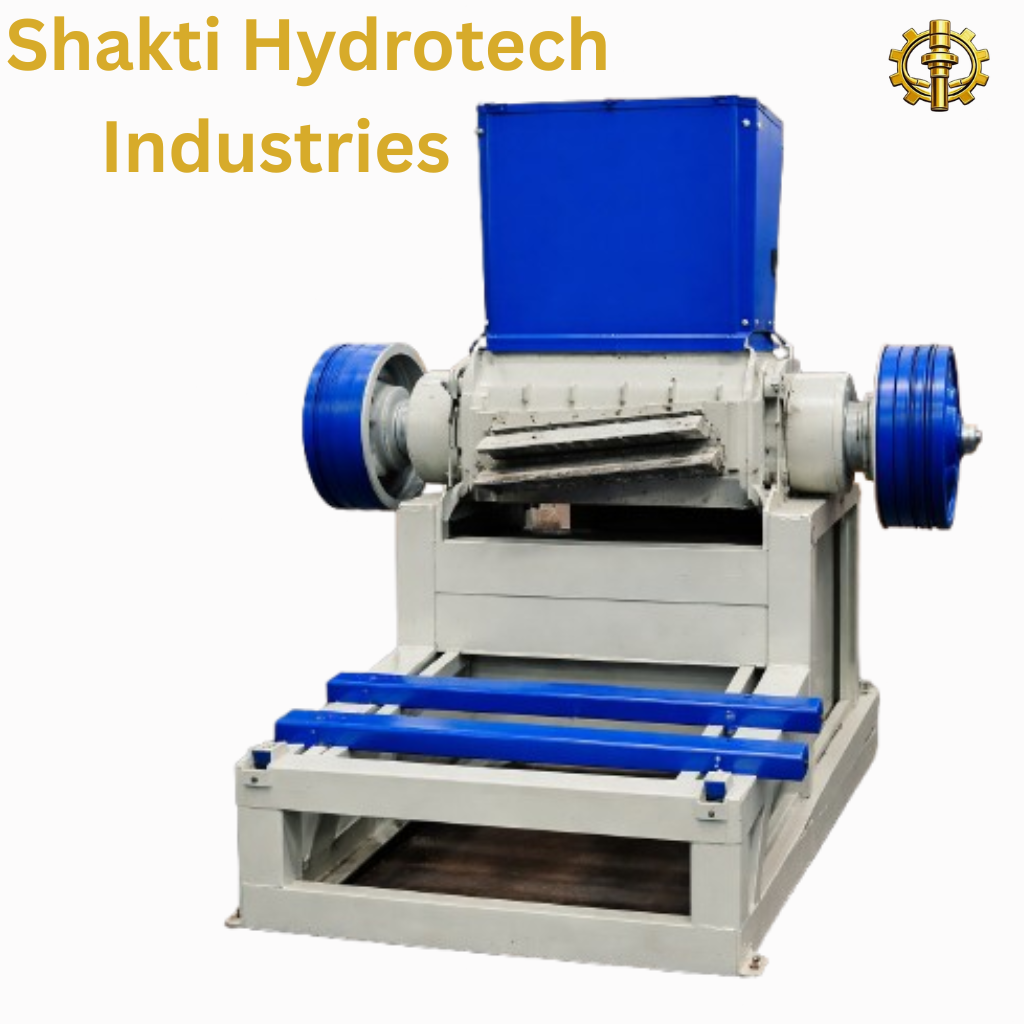

♻️ PVC Scrap Crusher Machine
⚙️ Basic Details
Machine Type: PVC Scrap Crusher / Plastic Granulator
Application: PVC Scrap Crushing & Recycling
Operation: Manual
Power Supply: 440V, 3 Phase,
Drive Type: Belt Driven
View Full Specifications
🏗️ Construction & Design
Body Material: Heavy Duty Mild Steel Fabricated body
Rotor Type: High Speed Rotor with Multiple Blades
Blade Material: Hardened Tool Steel
Cutting System: Rotating + Fixed Blades
Feeding System: Hopper Feeding / Conveyor (Optional)
⚡ Performance
Motor Power:
👉 5 HP – 70 HP (model dependent)
Processing Capacity:
👉 50 Kg/hr – 1500 Kg/hr (model dependent)
Rotor Speed:
👉 400 – 800 RPM
Output Size:
👉 5 mm – 20 mm granules adjustable
Operation Type: Continuous
🔩 Crushing Capability
PVC Pipes & Profiles
PVC Sheets & Boards
PVC Cable Scrap
Plastic Molding Scrap
Industrial Plastic Waste
🛢️ Mechanical & System Details
Blade Configuration:
Moving Blades: 10 – 20 Nos.
Fixed Blades: 4 – 8 Nos.
Replaceable Mesh (8mm – 20mm)
Safety System: Overload Protection + Emergency Stop Switch on panel
📏 Machine Specifications
Feed Opening Size: 200 mm – 1200 mm (model based)
Machine Weight: 500 Kg – 2000 Kg
Installation: Floor Mounted (No heavy foundation required in small models)
🔧 Key Features
High-speed cutting for fast crushing
Uniform granule size output
Strong alloy steel blades → long life
Low noise & vibration design
Easy maintenance & blade replacement
Continuous production for industrial use
♻️ Suitable Materials
PVC Scrap (Pipe, Sheet, Profile)
HDPE / LDPE / PP Plastic
Cable Insulation Scrap
Plastic Containers & Molding Waste

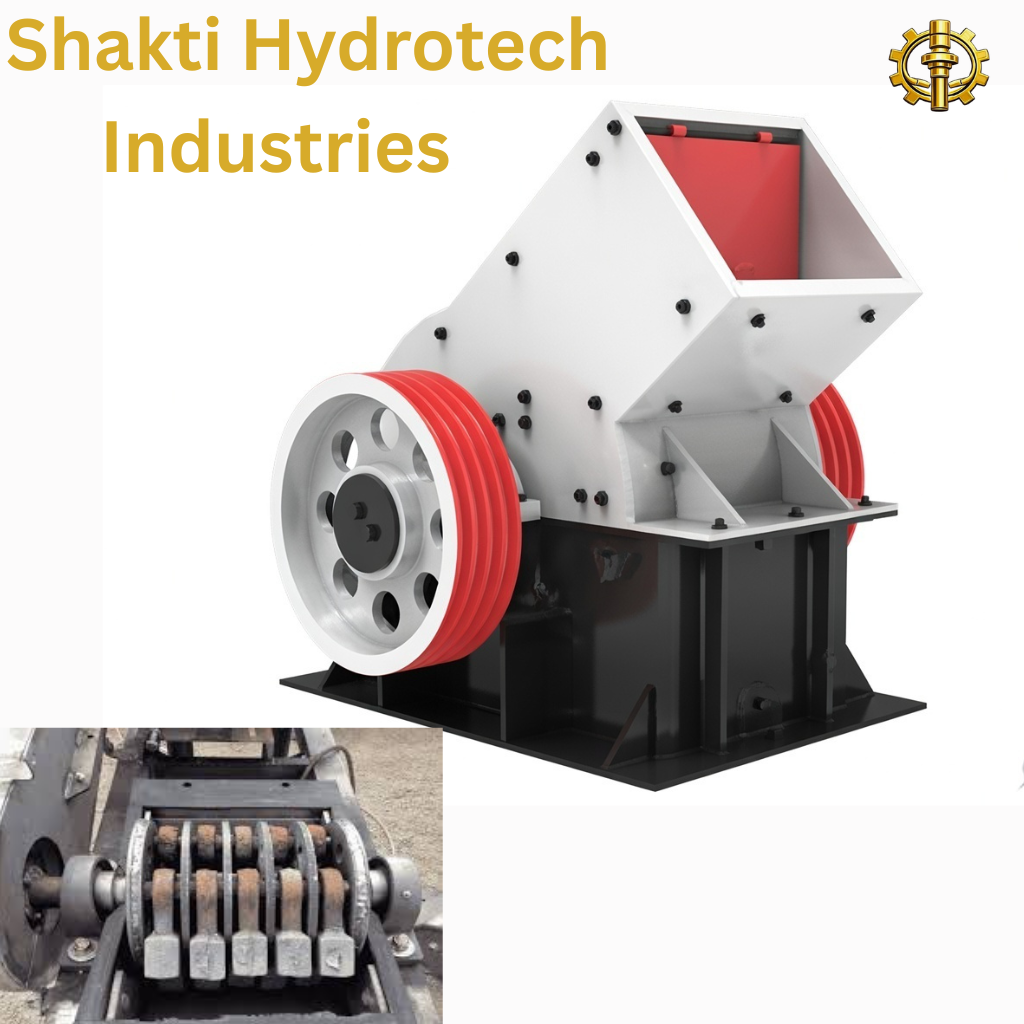

🔨 Industrial Hammer Mill Crusher for Metal Scrap & Alloy Metals
⚙️ Basic Details
Machine Type: Industrial Hammer Mill Crusher
Application: Metal Scrap Crushing & Size Reduction
Operation: Menual / Semi-Automatic
Motor Power: 75 HP – 150 HP (Model dependent)
Voltage: 440V, 3 Phase, 50 Hz
Drive Type: Direct Coupled
View Full Specifications
🏗️ Construction & Design
Body Material: Heavy Duty Mild Steel Fabrication
Hammer Type: Fixed Hardened Alloy Steel Hammers
Rotor Type: Heavy Duty Balanced Rotor
Feeding System: Hopper Feeding / Conveyor (Optional)⚡ Performance
Capacity:
👉 500 Kg/hr – 5 Ton/hr (model & material based)
Rotor Speed: 800 – 1500 RPM
Output Size: 10 mm – 50 mm
Crushing Efficiency: High-speed impact crushing
Production Type: Continuous Operation🔩 Crushing Capability
Metal Scrap: Light & Medium Scrap
Alloy Metals: Aluminium Alloy, Brass, Copper Alloy
Auto Scrap: Car body parts, sheet metal
Casting Scrap: Foundry rejects
E-Waste Metals: Mixed metal parts🛢️ Mechanical & System Details
Bearings: Heavy Duty Spherical Roller Bearings
Lubrication: Grease / Oil Lubrication System
Cooling System: Air Cooling
Vibration Control: Anti-vibration pads / base📏 Machine Specifications
Feeding Size: Up to 300 mm (depends on model)
Discharge Type: Bottom Discharge
Machine Weight: 2 – 8 Ton (as per model approx.)
Foundation: Required (Heavy Duty Base)🔧 Key Features
High-speed crushing for faster output
Strong alloy steel hammers for long life
Uniform output size
Low maintenance & easy replacement of parts
Continuous heavy-duty industrial use
Suitable for scrap yard & recycling plants♻️ Suitable Materials
Light Steel Scrap
Alloy Metal Scrap
Electronic Metal Waste

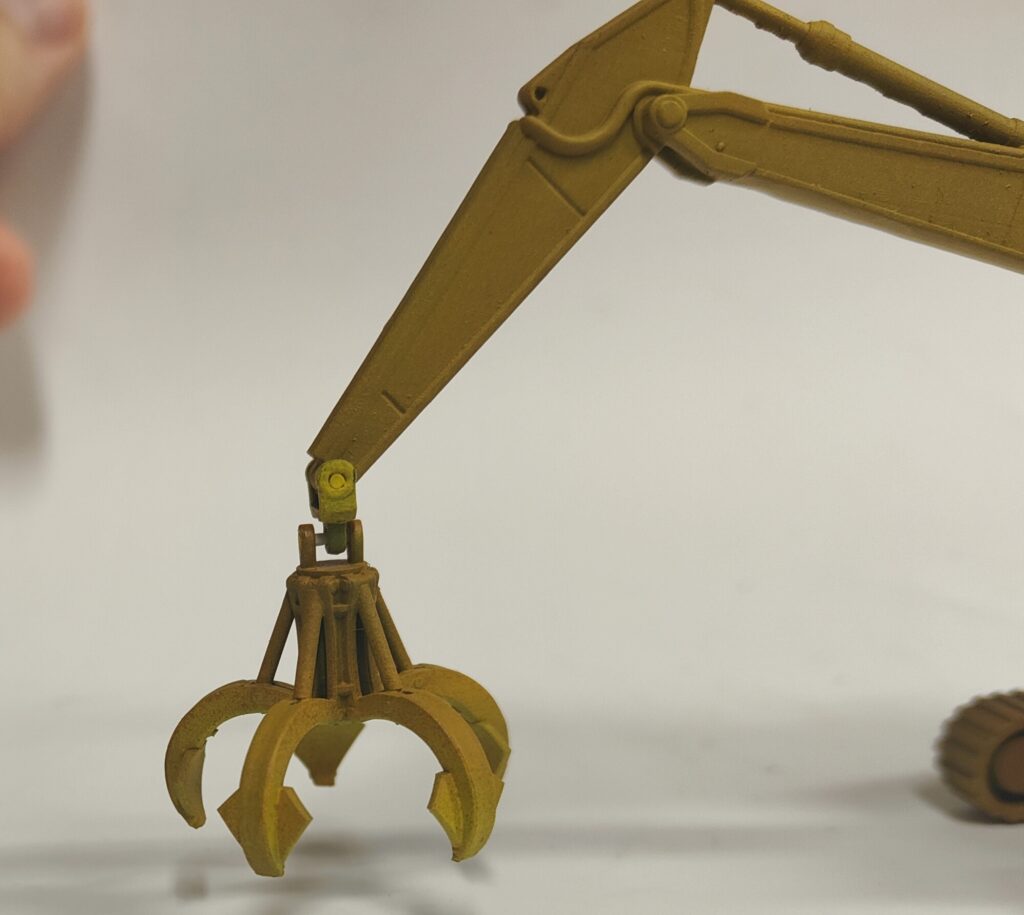

🏗️ Scrap Metal Grab Handling Machine
⚙️ Basic Details
Machine Type: Scrap Metal Grab Handling Machine
Operation: Hydraulic / Electro-Hydraulic
Application: Scrap Loading, Unloading & Material Handling
Mounting Type: Excavator Mounted / Crane Mounted / Fixed Setup
Power Source: Electric Motor / Diesel Engine (Model dependent)
View Full Specifications
🏗️ Construction & Design
Body Material: Heavy Duty Mild Steel Fabrication
Grab Type: Orange Peel Grab (4 / 5 Tine)
Tine Material: High Strength Alloy Steel
Rotation: 360° Continuous Hydraulic Rotation
Mounting: Flange / Pin Type Mounting
⚡ Performance
Lifting Capacity:
👉 100 Kg – 3000 Kg (model based)
Grab Capacity:
👉 0.3 m³ – 2.5 m³
Operating Pressure: 150 – 250 Bar
Cycle Time: 10 – 25 Seconds
Working Radius: Depends on crane/excavator
🔩 Hydraulic System
Hydraulic Cylinders: Heavy Duty Double Acting
Hydraulic Pump: Gear / plunger pump
Control System: Joystick / Remote Control / Cabin Control
Oil Requirement: Hydraulic Oil 68 Grade
📏 Machine Specifications
No. of Tines: 4 / 5 (customizable)
Rotation Motor: Hydraulic Rotary Motor
Machine Weight: 500 Kg – 2500 Kg (approx.)
Mounting Compatibility: 3 Ton – 20 Ton Excavators / Cranes
🔧 Key Features
360° rotation for easy scrap handling
Strong gripping for irregular scrap shapes
Heavy-duty tines for long life
Fast loading & unloading → saves labor cost
Easy installation on crane or excavator
Suitable for continuous industrial use
♻️ Suitable Materials
Metal Scrap (MS, Iron, Steel)
Aluminium Scrap
Copper Scrap
Heavy Industrial Waste
Scrap Bundles (Bales)
Foundry Scrap

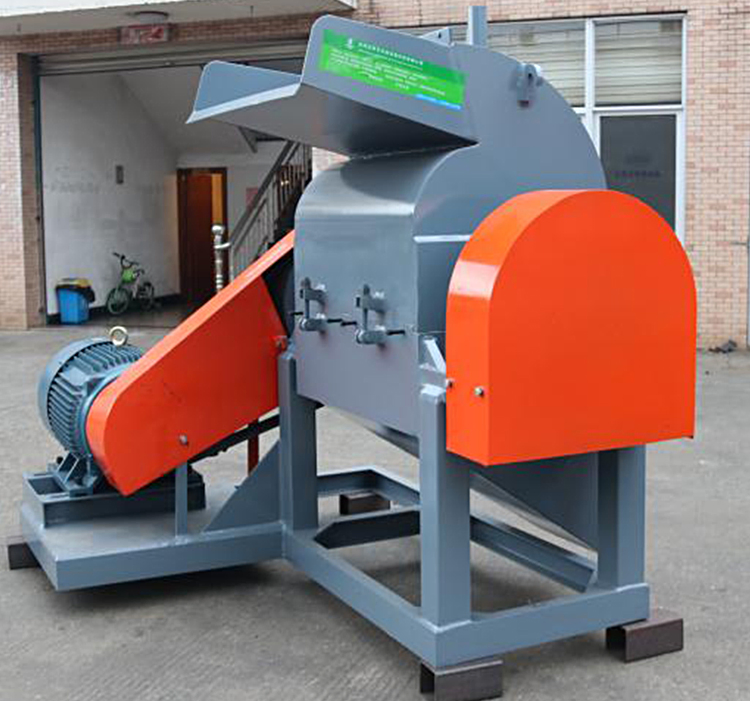

🔌 Metal & Copper Separator for Cable Recycling Plants
⚙️ Basic Details
Machine Type: Copper Wire Recycling & Separation Machine
Application: Copper & Plastic Separation from Cables/Wires
Operation: Fully Automatic
Technology: Crushing + Air Separation + Gravity Separation
Power Supply: 440V, 3 Phase, 50 Hz
View Full Specifications
🏗️ Machine Components
Wire Crusher / Granulator
Air Blower System
Vibrating Separation Table
Dust Collection Unit
Control Panel (PLC Based)
Conveyor System (Optional)
⚡ Performance
Processing Capacity:
👉 100 Kg/hr – 1000 Kg/hr (model based)
Separation Efficiency:
👉 95% – 99% Copper Recovery
Output Type:
Pure Copper Granules
Plastic (PVC) Granules
🔩 Crushing & Separation Details
Input Material Size: 1 mm – 30 mm Cable Diameter
Output Copper Size: 1 mm – 5 mm granules
Separation Method: Air Density + Vibration System
Dust Control: Cyclone / Bag Filter System
🛢️ Mechanical & Electrical
Motor Power: 15 HP – 60 HP (Full Line)
Blower System: High Speed Air Blower
Vibration Motor: Heavy Duty Industrial Motor
Control System: PLC / Automatic Panel
📏 Machine Specifications
Machine Weight: 1.5 – 5 Ton (approx.)
Installation Area: 10 ft x 15 ft (approx.)
Operation Type: Continuous Production
🔧 Key Features
High copper recovery rate (up to 99%)
Eco-friendly process (no burning of wires)
Low power consumption with high output
Dust-free operation with pollution control
Automatic continuous processing system
Compact design, easy installation
♻️ Suitable Materials
Electrical Wires & Cables
Armoured Cable Scrap
House Wiring Scrap
Industrial Cable Waste
Data / Communication Wires.
